PK 92002 SH
Scania R 500 8x4 NB
Contract number: Paldrive 600
Specification
All images are from a reference project
Paldrive 600 will be ready for delivery from week 45 /2025
Paldrive 600 will be ready for delivery from week 45 /2025
PK 92002 SH
| lifting moment | 85,5 mt |
| max. outreach incl. Fly-Jib | 29,0 m |
| max. lifting capacity | 26.000 Kg |
| swivel range | endless |
| rope whinch type | 3,5to |
MCC-INSTALLATION
| low built Platform | |
|---|---|
| Platform length | 5.300 mm |
| Platform width | 2.480 mm |
| frontwall height | 1.900 mm |
| side & rearwall height | 400 mm |
| loading height | 1.200 mm |
| Platform floor | Plywood |
Scania R 500 8x4 NB
| construction year | 2025 |
| power | 500 Hp |
| gearbox | G33CM + Opticruise |
| main Wheelbase | 4.950 mm |
| cabin | CR20N |
| GSR II options | yes |
Offer information
Location details
MCC-NORTH SOLEC, 86-050 - Poland
Dealer Name
Palfinger EMEA GmbH PL
Product type
New Contract number
Paldrive 600 Product
| Manufacturer | Palfinger |
|---|---|
| Model | PK 92002 SH |
| Construction year | 2025 |
|---|---|
| Lifting moment | 85,5 mt |
| Outreach / Lifting power | 29,0 m / 1.220 kg |
truck
| Truck manufacturer | Scania |
|---|---|
| Construction year | 2025 |
| Drivers cabine | CR20N |
| Wheel base | 1.990 mm + 2.960 mm + 1.350 mm |
| Power | 500 PS |
| Emmission standard | EURO 6 |
| Axes | 8x4 |
|---|---|
| Gross vehicle weight | 32.000 kg |
| Dead weight | 27.300 kg |
| Payload | 4.700 kg |
| Payload category | <6t |
| Construction | Crane and platform |
PK 92002 SH
HYDRAULIC & TECHNICS
- 7 hydraulic boom extensions (F)
- High-speed boom extension system with return oil recovery
- Swivel range endless
- Hydraulic support leg extension (max.support width 8.600mm)
- Support legs can be swiveled hydraulically through 180°
- Additional hydraulic support (support width ca. 8.500 mm)
- Hose equipment for two additional devices including quick coupling (multi-faster)
- 3,5to cable winch on the main arm (hydr. foldable)
- Rope length: 90m
ASSISTANCE SYSTEMS
- Paltronic 150
- HPSC + LOAD
- Remote controlled stabilizers
- CPS (cabin protection)
- FPS (Frame Protection System)
- P-FOLD (Folding Assistant)
- AOS (Active Oscillation Suppression)
- SRC (Synchronised Rope Control)
- RTC (Rope Tension Control)
EQUIPMENT
- Palcom P7 radio remote control /9 functions with cross levers
- Working lights on the articulated arm
- 8,0to & 18,0to load hook
- 2 strand rope equipment on the Crane
- Painting RAL3020
- hydraulc oil tank 350 l
PJ 170
Configuration
- 6 hydraulic extensions (E)
- High-speed extension system with return oil recovery
- Hydr. tiltable upwards by 25°
- MFA-L - Multifunctional adapter
- 1 strand rope equipment for the PJ 170
- Working light at the PJ 170
- Hose equipment for two additional devices including quick coupling (multi-faster)
Installation
- Palfinger MCC low build platform
- Platform inner dimenstions: 5.300mm x 2.480mm

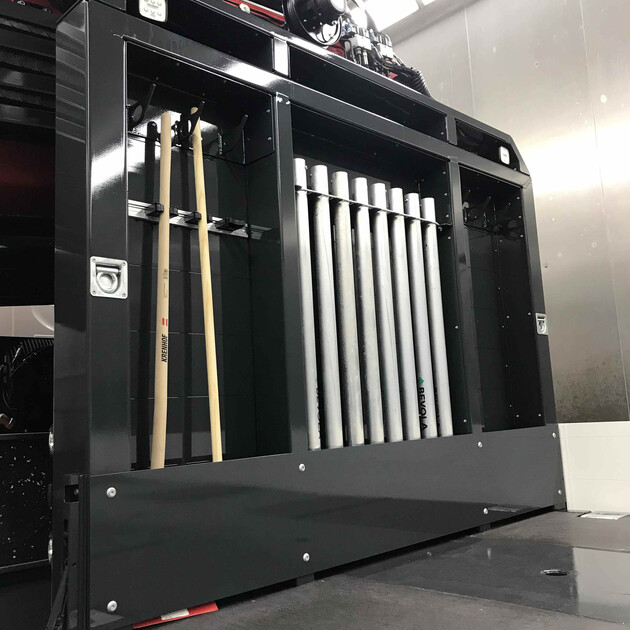

- Front wall: height 1.900 mm including working lights, towing points, storage depot for stanchions & retaining bar for chains and loops
- Side- and rearwalls height: 400 mm
- Platform floor 27 mm plywood, impregnated and sealed
- Various lashing options on the platform floor
- Loading height: 1.200mm
- 1 pair of Container locks extendable (max. 3.000mm width)
- 1 pair of Container supports extendable (max. 3.000mm width)
- 6 working lights
- 2 reversing lights
- Rear view camera
- Emergency power pack for basket operation
- Heavy duty tool box with a load capacity of 500 kg
- 2 pcs. of heavy duty chain-trays at the additional stabilizers
- Two-part telescopic ladder
- Trailer coupling: RF40 G 150 A
- 2 wheel chocks

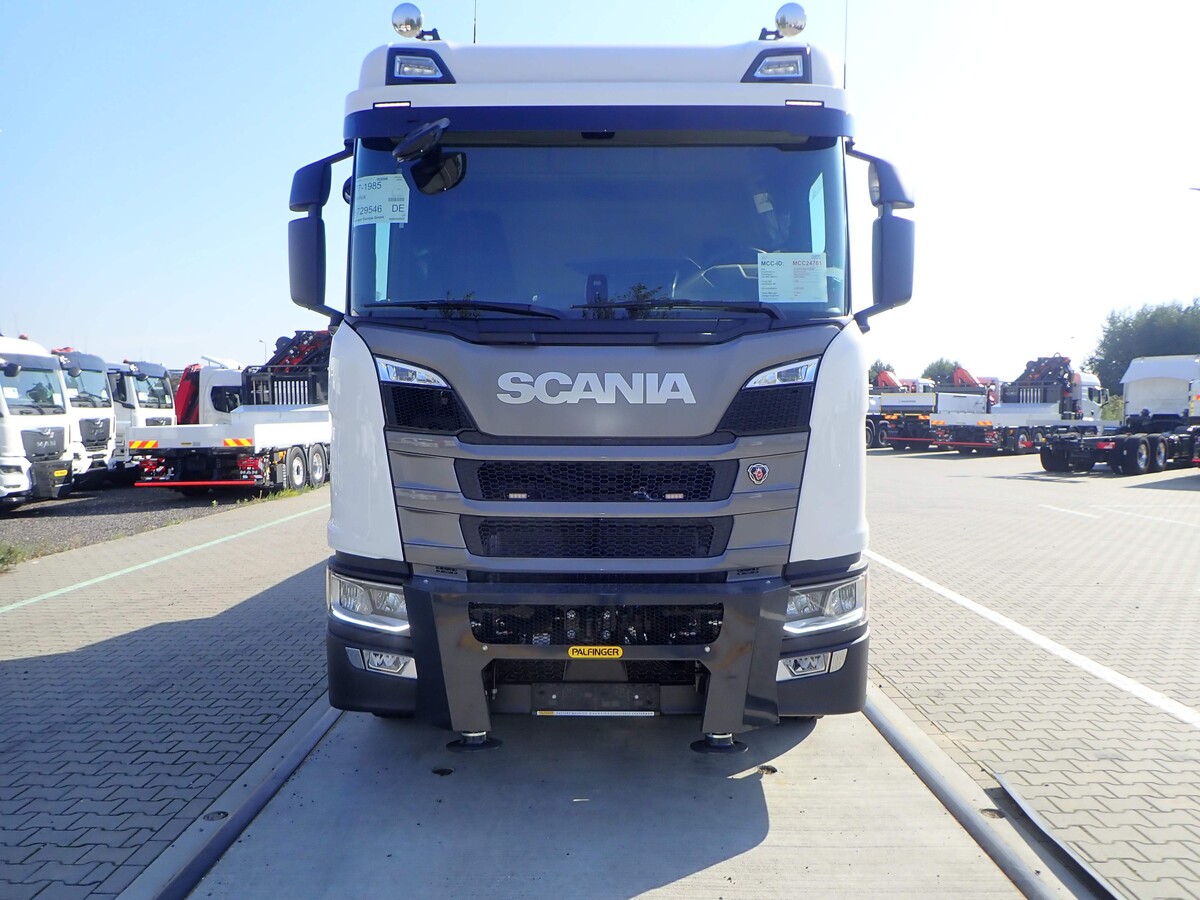

Scania R 500 8x4 NB
- Engine: 500 Hp, torque max. 2.650 Nm
- Gearbox: G33CM + Opticruise + retarder
- Axle distance: 1.990mm + 2.960mm + 1.350mm
- air suspension on all axles
- Fuel tank 350l / AD-Blue 47l
- Tires 1st & 2nd axle: 385/65R22.5
- Tires driven axles: 315/80 R22.5
- Rims on all axles: aluminium Alcoa Durabright
- Cabin colour: Scania Ivory White / chassis colour: Scania Sub Grey
- Cabin type: CR20N

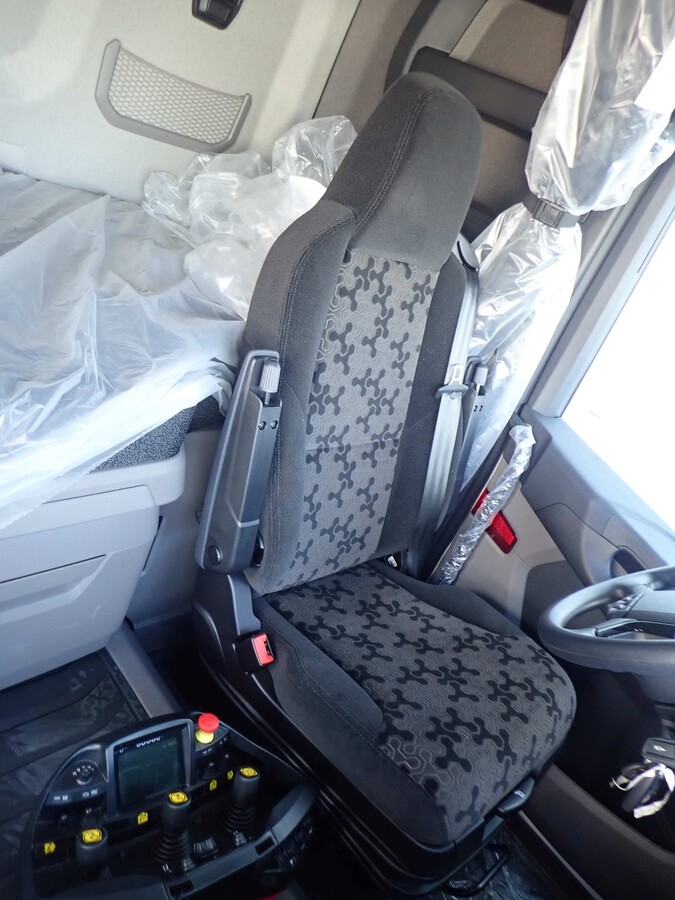

- Premium Cabin interior
- auxiliary heating: 3kW
- Multifunctional steering wheel
- Infotainment system equipped with 10.1-inch colour display
- GSR II options included
- construction Year: 2025
