PK 245 TEC

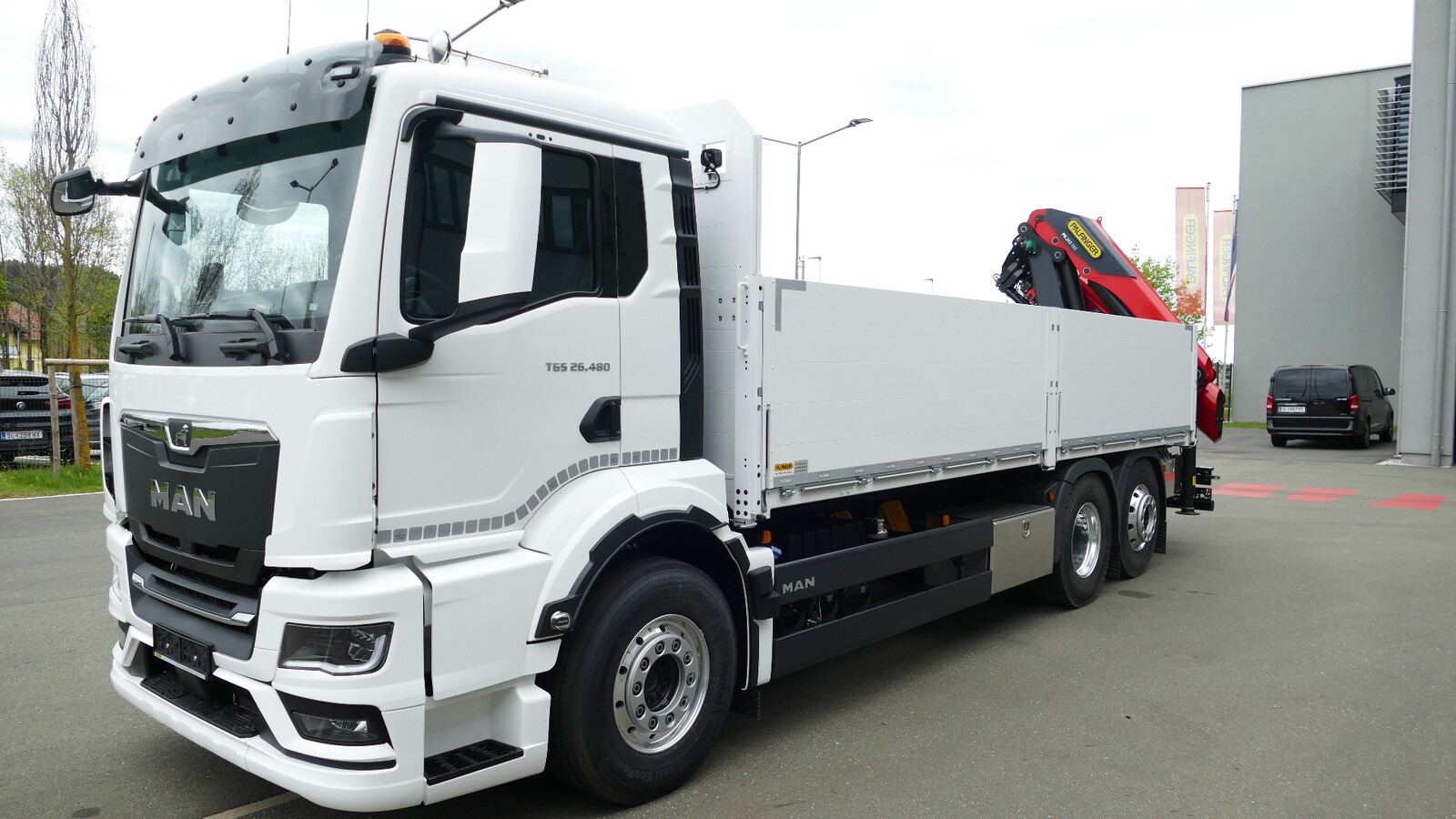

MAN TGS 26.480 6x2-4 LL CH
Contract number: Paldrive 572
Specification
PK 245 TEC
| lifting moment | 23,5 mt |
| max. outreach | 15,3 m |
| max. lifting capacity | 6.400 Kg |
| swivel range | 408° |
MCC-INSTALLATION
| Platform | |
|---|---|
| Platform length | 6.600 mm |
| Platform width | 2.480 mm |
| frontwall height | 1.800 mm |
| side & rearwall height | 950 mm |
| loading height | 1.340 mm |
| Platform floor | Aluminum |
MAN TGS 26.480 6x2-4 LL CH
| construction year | 2024 |
| power | 480 Hp |
| gearbox | TipMatic 12.26 DD |
| main Wheelbase | 4.800 mm |
| cabin | NN |
| GSR II options | yes |
Offer information
Location details
Lengau, 5211 - Austria
Dealer Name
Palfinger EMEA GmbH AT
Available from
07.05.2025 Product type
New Contract number
Paldrive 572 Product
| Manufacturer | Palfinger |
|---|---|
| Model | PK 245 TEC |
| Construction year | 2025 |
|---|---|
| Lifting moment | 23,5 mt |
| Outreach / Lifting power | 15,1 m / 1.130 kg |
truck
| Truck manufacturer | MAN |
|---|---|
| Construction year | 2024 |
| Drivers cabine | NN |
| Wheel base | 4.800 mm + 1.350 mm |
| Power | 480 PS |
| Emmission standard | EURO 6 |
| Axes | 6*2*4 |
|---|---|
| Gross vehicle weight | 26.000 kg |
| Dead weight | 15.000 kg |
| Payload | 11.000 kg |
| Payload category | 6t - 15t |
| Construction | Crane and platform |

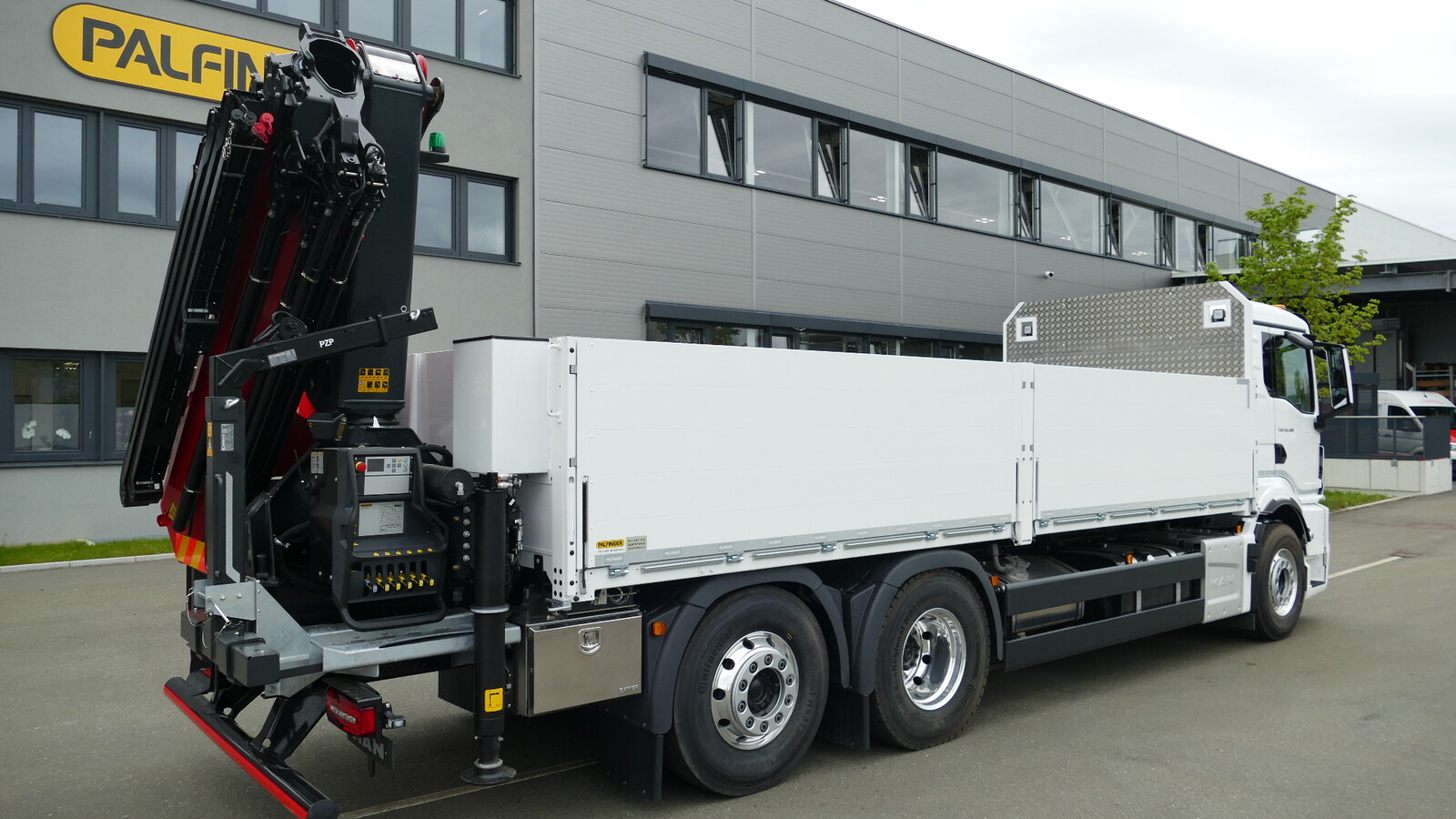

PK 245 TEC
HYDRAULIC & TECHNICS
- Rigid and lightweight boom extension system in polygonal shape (P-Profile)
- 5 hydraulic boom extensions (D)
- Low maintenance extension system
- High-speed boom extension system with return oil recovery
- Piston rod protection for the outer boom cylinder
- Swivel range 408°
- Danfoss control valve
- Hydraulic support leg extension (max.support width 7.400mm)
- Hose equipment for two additional devices
- hydraulc oil tank 250 l
ASSISTANCE SYSTEMS
- Paltronic 180
- HPSC + LOAD
- Remote controlled stabilizers
- AOS (Active Oscillation Suppression)
- Acoustical overload warning
EQUIPMENT
- P6 - Scanreco MICRO radio remote control /6 functions with cross levers
- Working light on the articulated arm
- 8to load hook
- Painting RAL3020
- PZP-VS Pallet Fork (Spring-Supported) capacity 1,5to
- Shaft Rotator 4.5 t / Ø 68 mm (package)

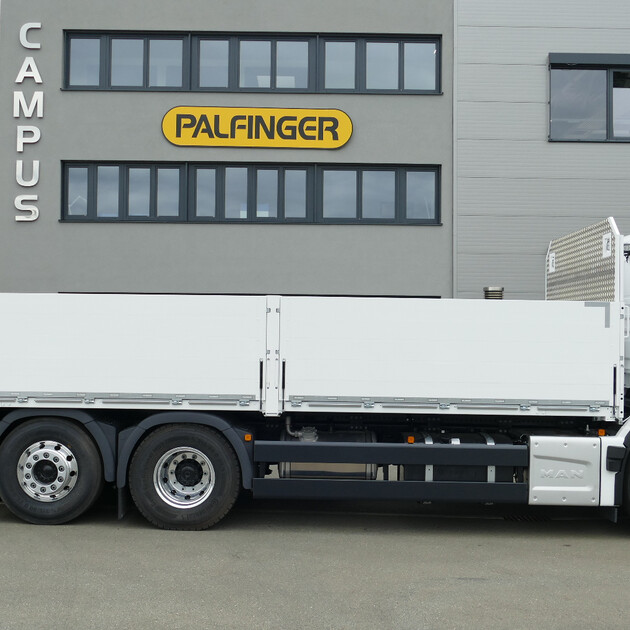

Installation
- PALFINGER top mounted platform - Eco
- platform inner dimenstions: 6.600mm x 2.480mm
- Front wall: height 1.800 mm including working lights and towing points
- Side- and rearwalls height: 950 mm
- Recessed folding steps on all 4 side walls
- Lashing rail in platform floor

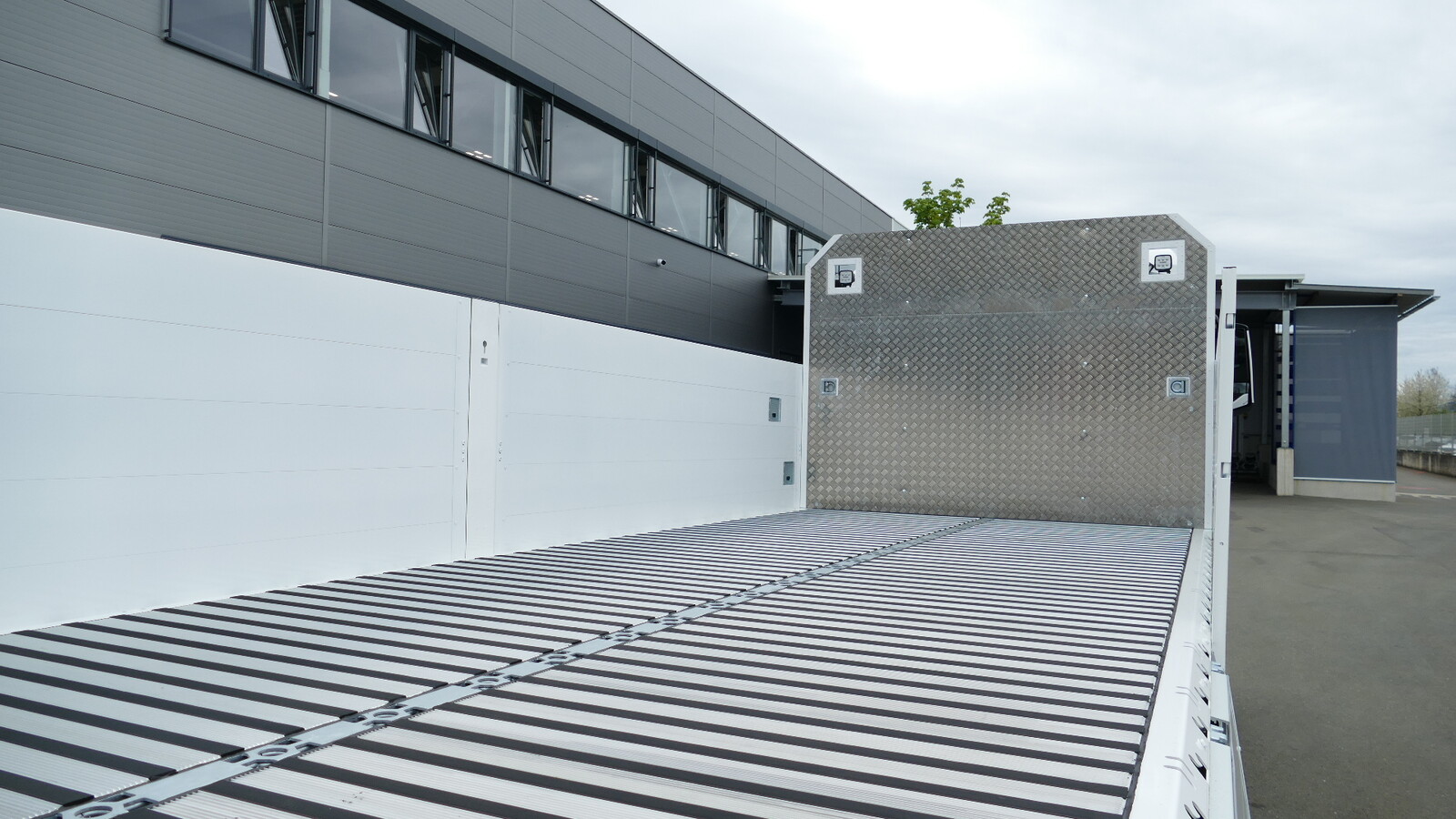

- Platform floor Aluminum Incl. anti-slip EPDM-Profile
- loading height: 1.340mm

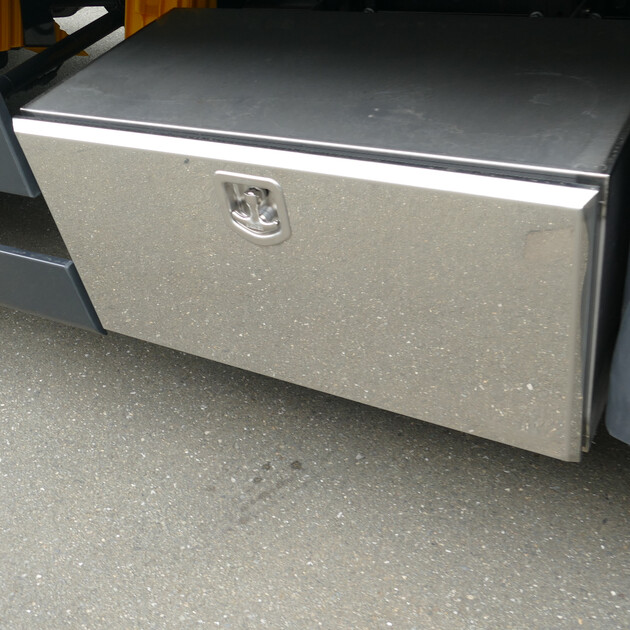

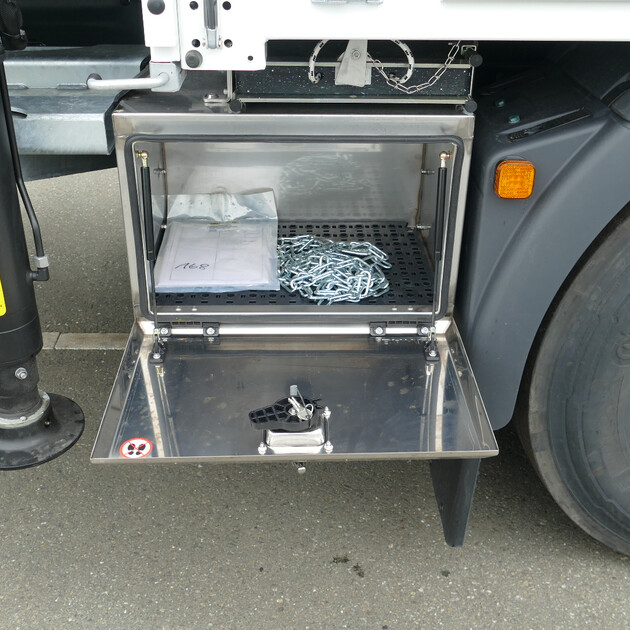

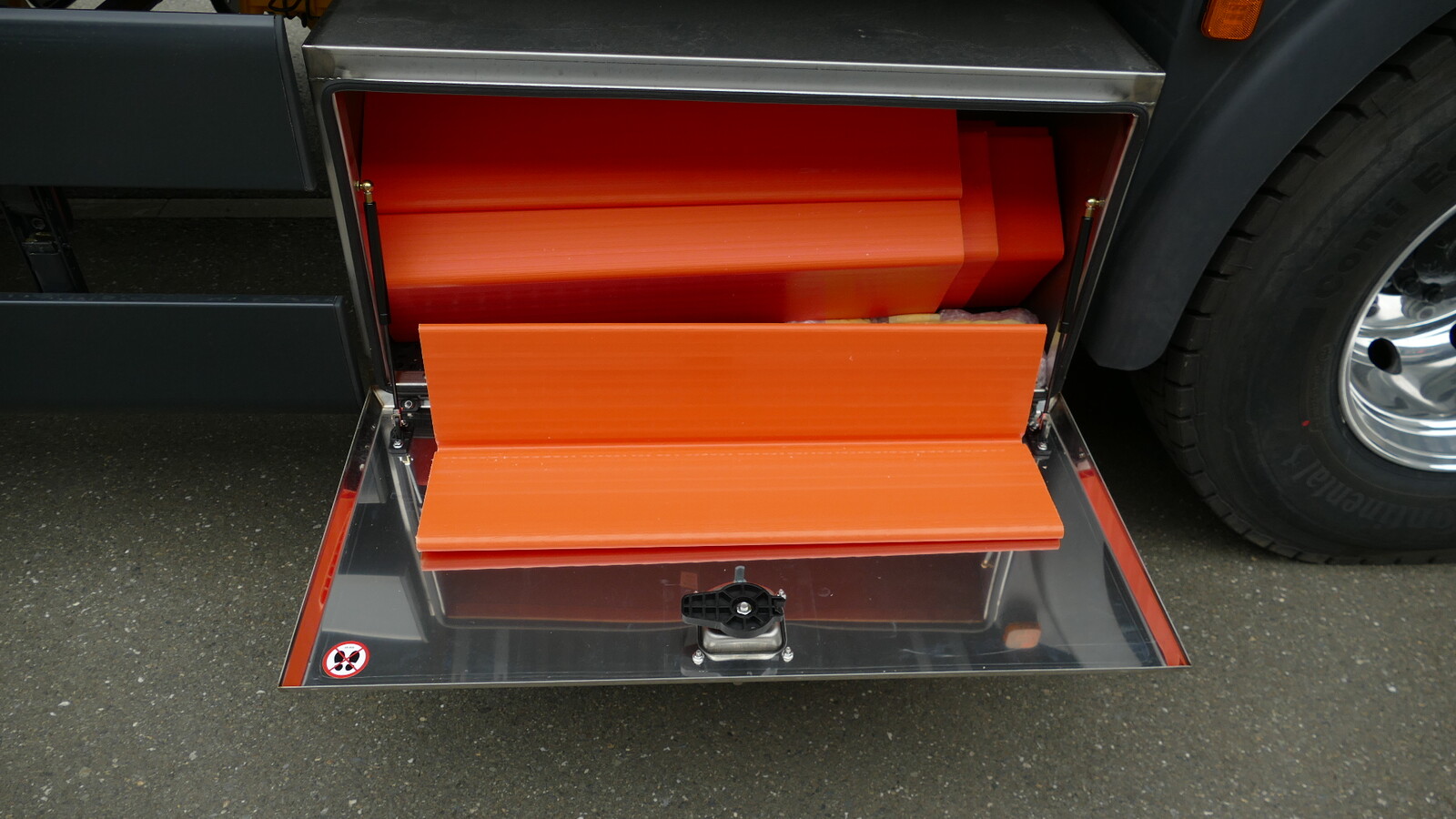

- 3x stainless steel toolbox
- Edge protector bracket
- Crane pallet fork holder
- Rear view camera
- Trailer coupling: RINGFEDER Typ RF40/G150B
- 2 wheel chocks

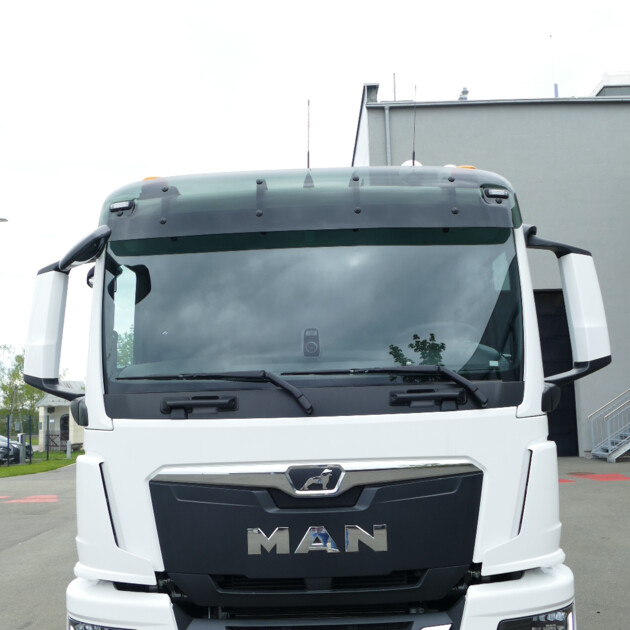

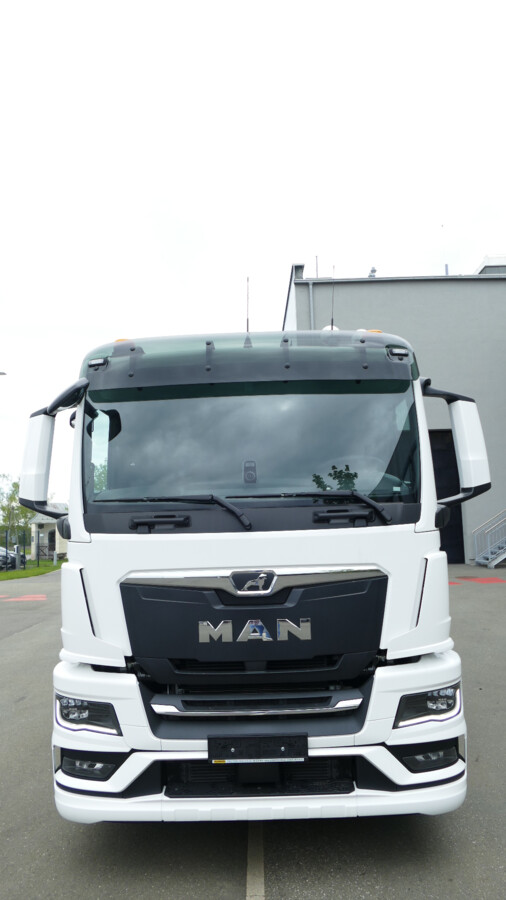

MAN TGS 26.480 6x2-4 LL CH
- Engine: 480 Hp, torque max. 2.450 Nm
- Gearbox: TipMatic 12.26 DD + Retarder 35
- Axle distance: 4.800mm + 1.350mm
- air suspension on all axles
- Fuel tank 400l / AD-Blue 60l
- Tires 1st axle: 385/65R22.5
- Tires driven axle: 315/80 R22.5
- Tires trailing axle: 315/80R22,5
- Rims on all axles: aluminium Alcoa Dura-Bright EVO
- Cabin colour: VERKEHRSWEISS RAL 9016 / chassis colour: RAL 9011
- Cabin type: NN
- auxiliary heating: 4 kW
- Multifunctional steering wheel
- Infotainment system equipped with 12.3-inch colour display
- GSR II options included
- construction Year: 2024
